Retrofit story
retrofit story
1930s End of Terrace in East Oxford.
Wrapping their home in insulation for a warmer, greener future
Eleanor and Chris wrapped their 1930s house in insulation to make it warmer, greener, and cheaper to run.
About the home
Eleanor and Chris live in a 1930s three-bedroom end-of-terrace house in Hunsdon Road, East Oxford. Their home has cavity walls and shares common characteristics with other houses in the area from the interwar period, including bay windows, and was heated by a gas boiler.
They used to keep their home at around 19°C when the heating was on in the winter. When they were working from home, they wore pullovers and used hot water bottles to help keep warm.
They decided to focus their retrofit on the main living area – a combined kitchen, dining room, and living room where triple glazing has now been installed. The Cosy Homes Oxfordshire team tailored their advice to help improve the energy efficiency of the home in a way that would work for them.
“Sixteen years ago we weren’t really aware of saving energy at all, and we had our thermostat up at 21°C, or something like that. But we’ve reduced the temperature setting, partly because of climate change, partly because of rising fuel bills.”
- Eleanor, Cosy Homes Oxfordshire client
What were their motivations?
Eleanor and Chris both became concerned about the impact of climate change and felt a responsibility to reduce the carbon emissions of their home.
The couple had both recently retired and wanted to get started on the project now they had extra time and funds. With fuel bills on the rise, they invested in their property to make it cheaper to run in the future.
They also decided to retrofit their home as an example of what can be done, and hopefully inspire others in the local community too.
While upgrading the insulation and draught proofing, they both understood they would need to improve ventilation and create good airflow to avoid any potential dampness issues.
Eight years ago, before starting on their retrofit journey, they got a thermal image of their house taken. It pointed out a massive heat leak from the bay windows. Interestingly, about 200 other houses in the estate share these windows, and thermal images of them suggest that the heat is escaping mainly from the connection between the bay window and the wall.
Additionally, the front door featuring single-glazed glass panels was losing heat too. On the flip side, houses with an extra external front door demonstrated better heat retention.
They had installed 10cm of loft insulation and cavity wall insulation 12 years prior, funded by a government grant. However, they later found out the work wasn’t done properly, and some of the cavity wall insulation had sagged.
While certain areas of the home had double glazing, it was showing signs of wear. Condensation was forming on the inside of windows, and some window frames were starting to buckle.
What measures were installed?
The retrofit measures included:

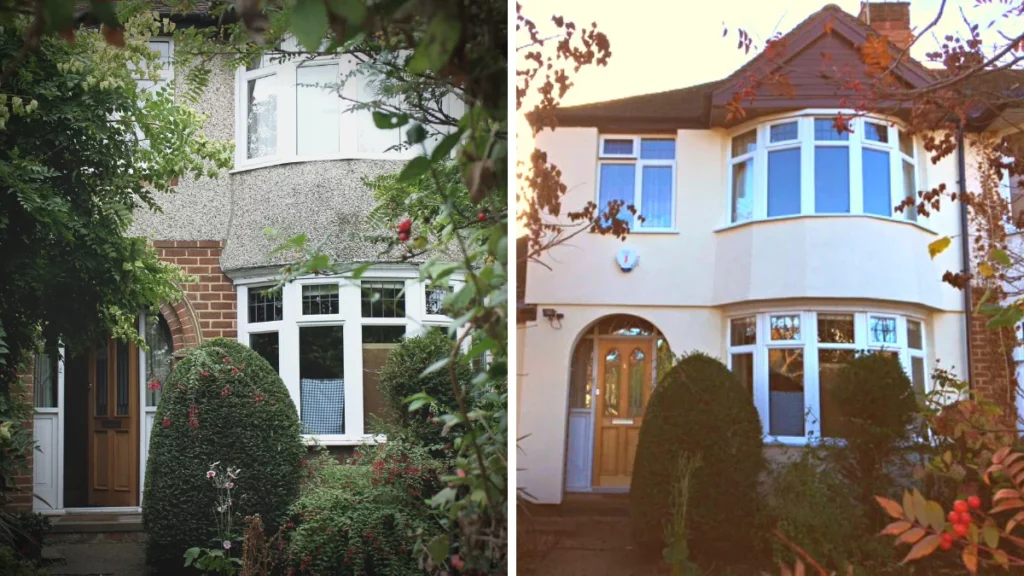

- External wall insulation
- Loft insulation and boarding, and insulated loft hatch

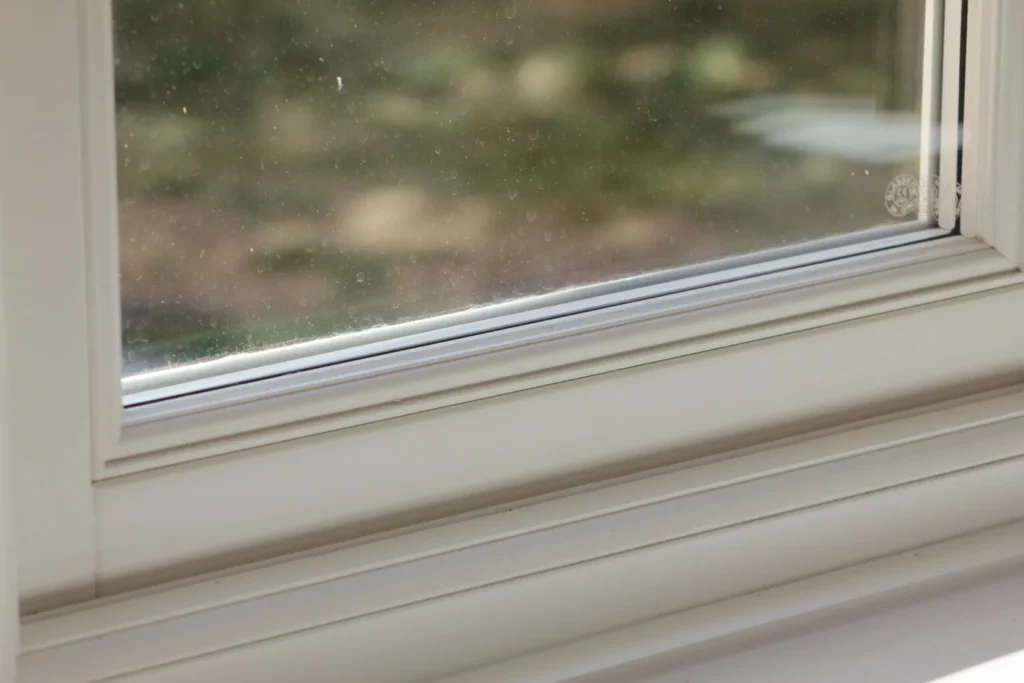

- High-performance triple-glazed doors and windows
- Demand controlled ventilation
They commissioned the Whole House Plan, which suggested installing an Air Source Heat Pump. The couple planned to proceed with this once their home met a high standard of insulation.
Project coordination
Cosy Homes Oxfordshire drafted a Whole House Plan to sort out the most important energy-efficient improvements for the home and create a project plan. The goal was to boost the home’s energy efficiency as much as possible.
Taking on a retrofit project can be very technical, and the couple recognised the value of the expertise Cosy Homes could provide.
“If we’re going to spend money on a big measure such as loft insulation, we want to make sure it’s properly done.“
- Chris, Cosy Homes Oxfordshire Client
When they had the loft insulation installed, the Retrofit Coordinator conducted a quality assessment. This assessment pinpointed some issues, known as snagging issues, which the contractor promptly fixed.
Eleanor and Chris appreciate that Cosy Homes looks at the whole house when making energy-efficient upgrades. They sought guidance from their Retrofit Coordinator to explore various measures and understand how these changes would work together to significantly reduce their home’s carbon footprint in the long run.
“We’re delighted with the Cosy Homes team. As neither of us is tech-savvy, we truly appreciate and value the guidance and advice they’ve provided.”
- Eleanor, Cosy Homes Oxfordshire client

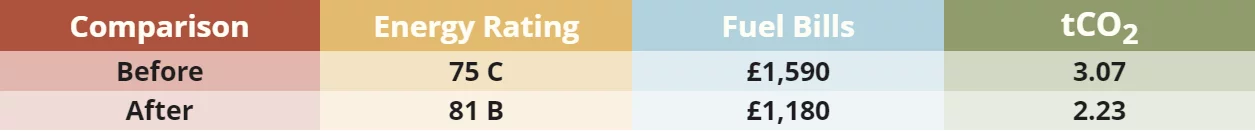

Estimated Savings
Savings are based on Whole House Plan estimates and following the recommended measures. The following savings are estimated for the home calculated in November 2022:
- 27% saving on carbon emissions, from 3.07 tonnes to 2.23 tonnes
- 26% saving on fuel bills, from £1,590 to £1,180 per year
- A boost from EPC rating C to B
